Industrial Shredder

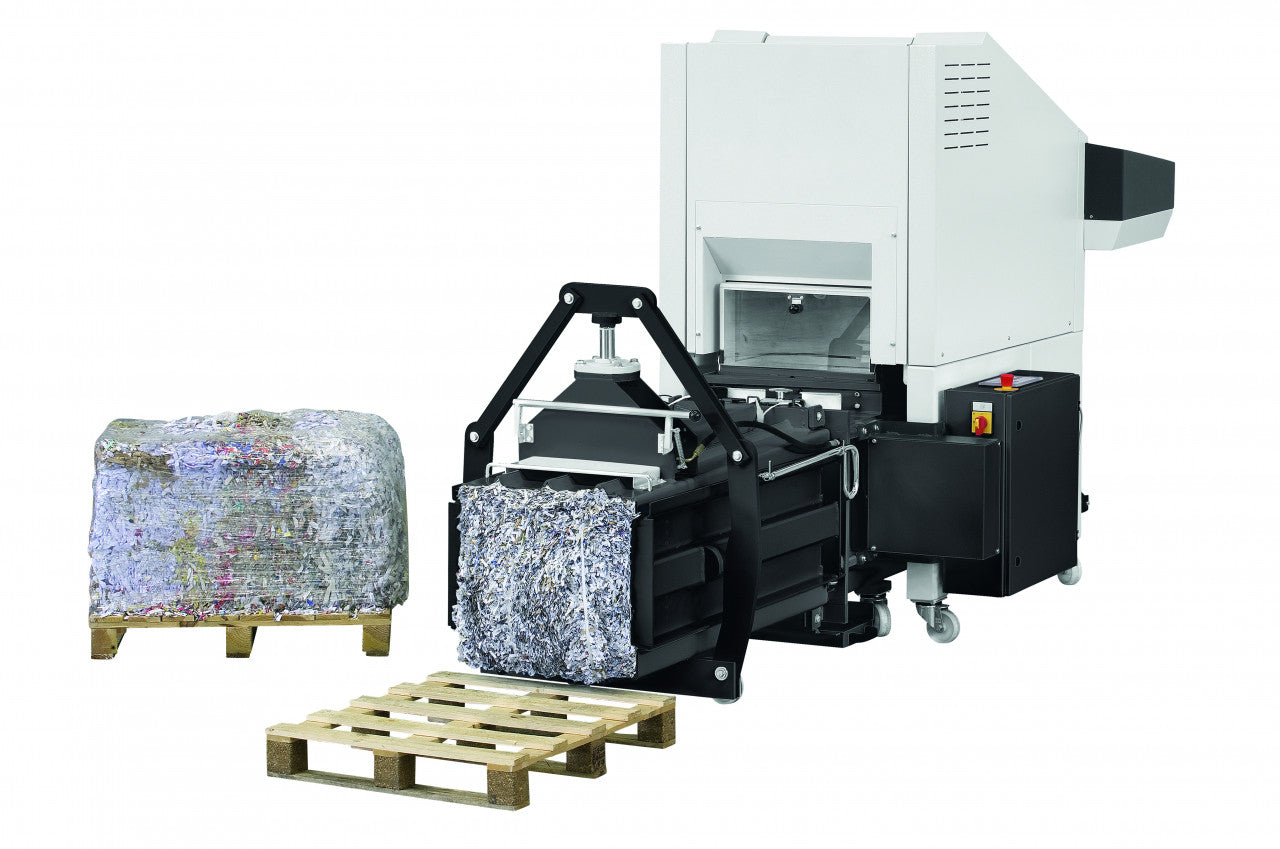

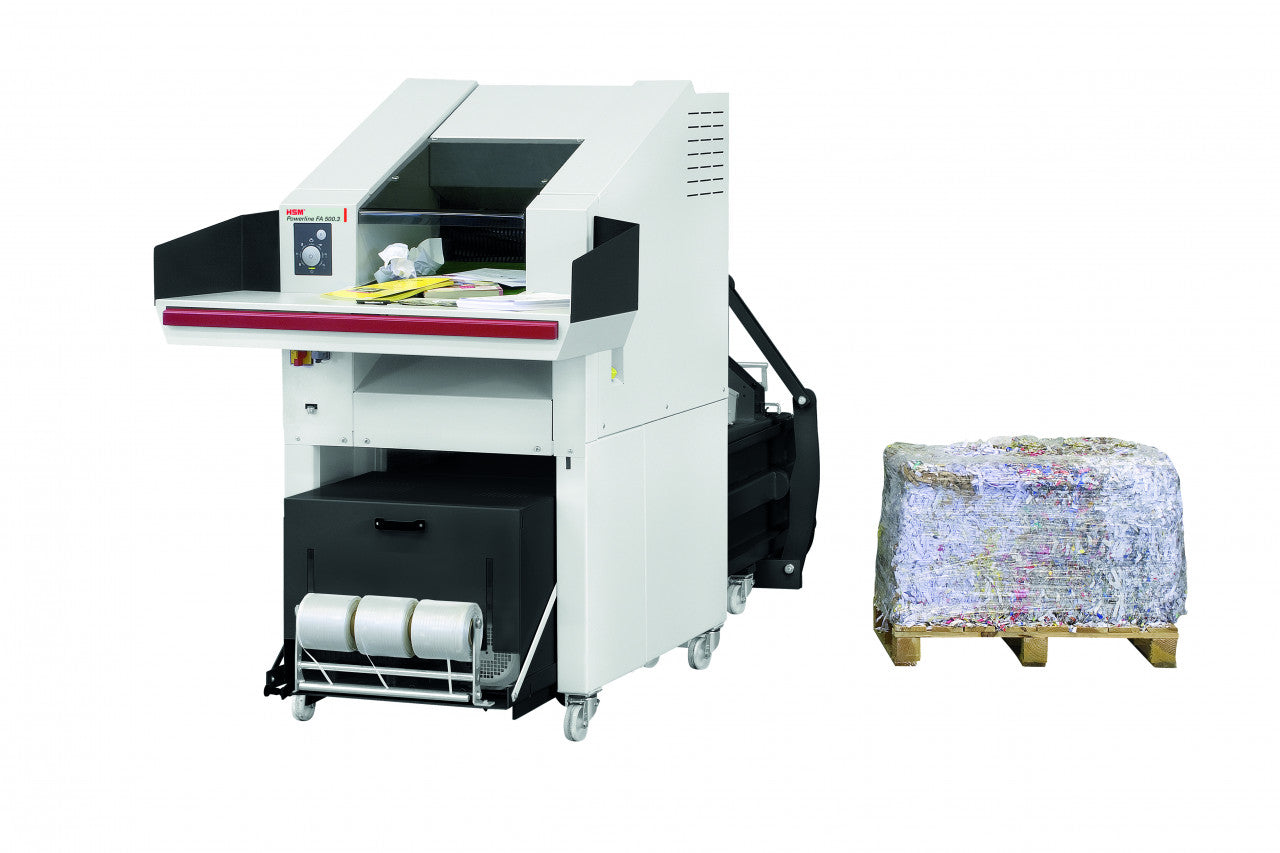

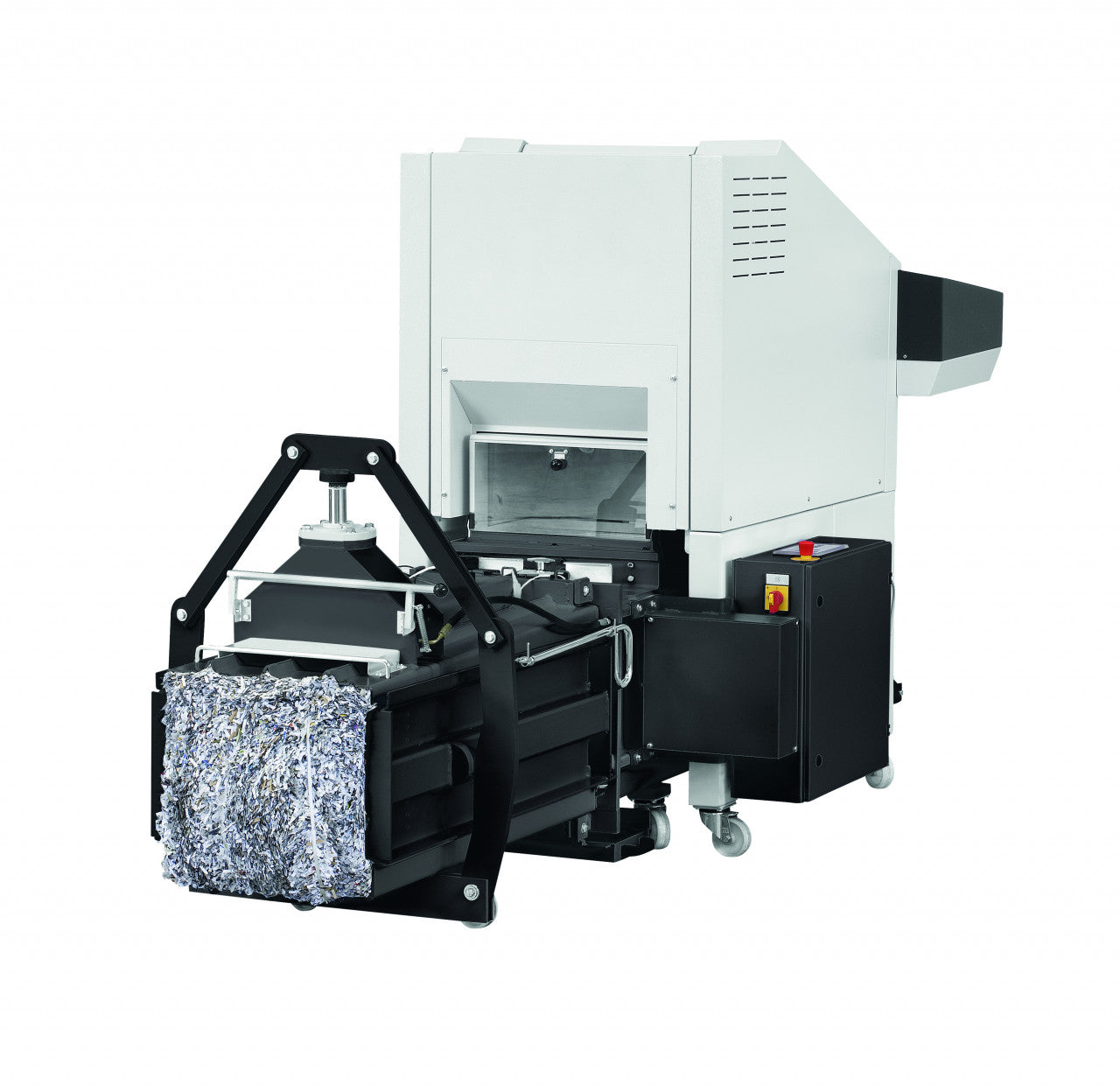

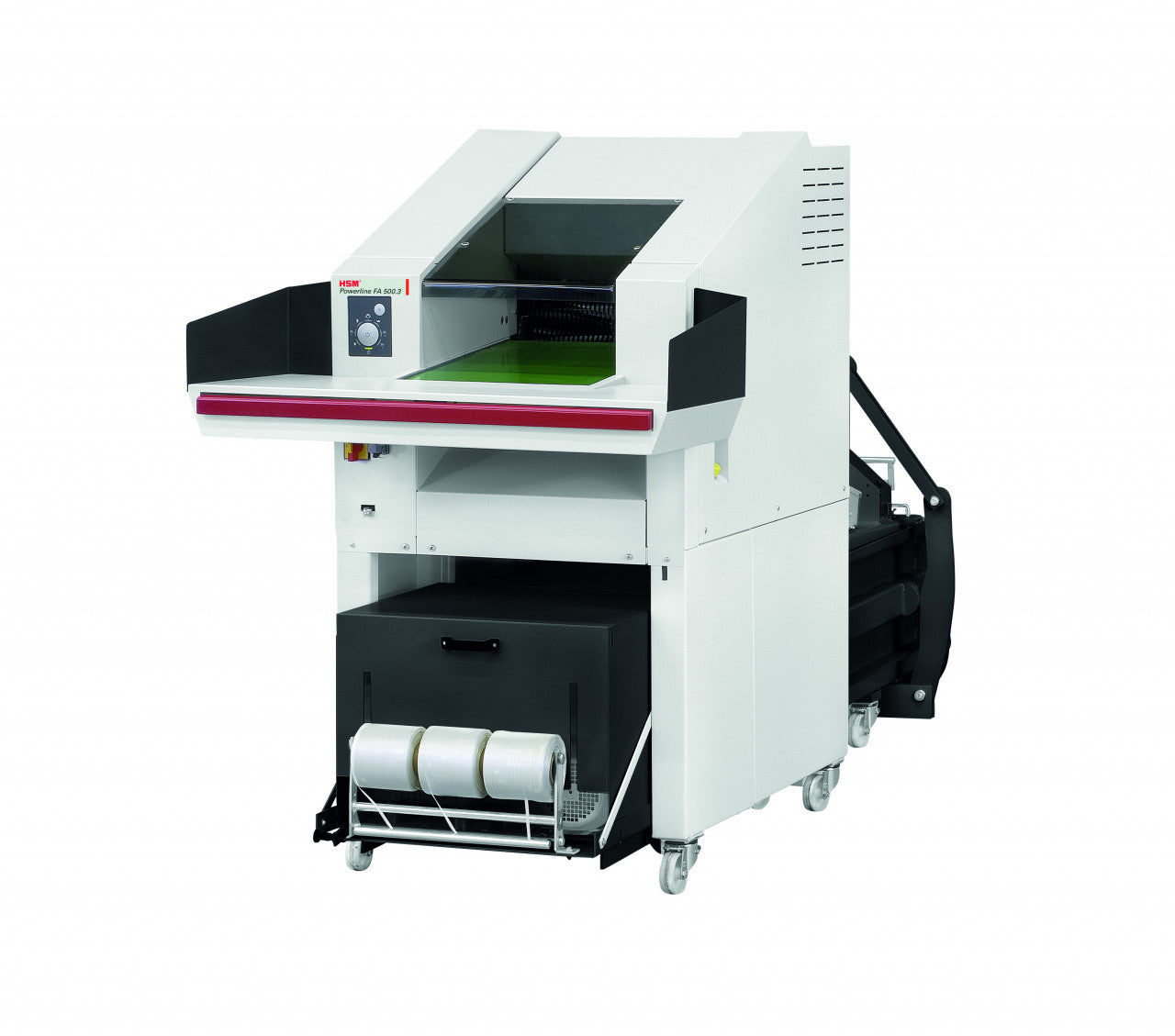

HSM SP 5080 shredder baler combination

The shredder baler combinations are complete, compact waste disposal stations they compress the shredded material into bales, which can be easily transported and recycled. The HSM shredder baler combinations are built for shredding large quantities.

Explore tailored solutions!

Get a quote now by filling out the form

Financing options available

Volume, government, or public sector, please contact us for a customized quote

1 (800) 463-0178 |

Industrial Shredder

With this waste disposal station, HSM combines the FA 500.3 heavy duty document shredder with a channel baling press. It is therefore perfect for use in archives or central stations for shredding large quantities of documents, which are then compressed into bales of up to 198 pounds.

  • Convenient material feeding via non-slip conveyor belt.
  • Continuous operation is possible thanks to the powerful motor with a chain drive.
  • Energy efficiency class IE3 compliant motors.
  • Automatic return eliminates paper jams.
  • Simple commissioning of the combination using Plug and Play.
  • Light barrier for automatic start of the compression process.
  • Shredded material is compressed into compact bales, which are manually tied o  with three baler straps and can also be disposed of cleanly in a waste bag.
  • The bale weight is variable depending on the requirement.
  • Automatic oiler provides for consistently high cutting capacity.
  • User safety through emergency off rail.
  • Multifunction element for intuitive operation.
  • Mobile on castors, with parking brake.
  • Cutting size: 1/4" x 1 1/2"-2 3/32"
  • Cutting type: cross
  • Cutting capacity in sheets: 360-410
  • Security level ISO/IEC 21964: P-3/O-2/T-3/E-2
  • Weight in lbs: 3,660
  • Dimensions (H x W x D): 71” x 50” x 127”,
  • Max. bale size (H x W x D): 19.68" x 19.68" x 37.4" (box size), Pressing power: 9.5 tons
  • Scope of delivery: Plastic bags (5 pieces), Special lubricating oil canister (1.32 gallons)
